SPECTROPHOTOMETER

 Spectrophotometers have made considerable progress from the main model imagined in 1940. Scaled down and joined with other current innovation, these gadgets presently have a wide scope of examination and reasonable applications in food, clinical, modern, and natural fields. This article centers around the explanations behind the fame of this strategy.

Principle of Spectrophotometer

          Light comprises electromagnetic radiation with a wide scope of frequencies, wavelengths, and energies that all movement at a similar speed. This includes the visible spectrum, as well as radiation of longer and shorter wavelengths on either side of the band.

Light is split when it strikes an object , as certain pieces of it are retained and the rest is reflected or communicated. The sort of communication relies upon the wavelengths  of the light and chemical  composition of the object. The resultant appropriation as far as recurrence and frequencies is known as a range. The range of light that objects radiate gives us data about their makeup

We can see this phenomenon occurring in everyday life. Leaves look green because chlorophyll absorbs blue and red light, and it emits the remaining light made of green wavelengths.

What is Spectrophotometer ?

Spectrophotometer is defined as the quantitative measurement of the intensity of light of various wavelengths in the spectrum emitted by matter.

The quantitative measurement of the interaction of matter with specific wavelengths has important applications in many fields of science, including physics, chemistry, astronomy, and biochemistry.

Spectrophotometer Measure?

          A spectrophotometer measures the number of photons emitted to estimate the intensity of light spectra absorbed and transmitted by a sample. This provides information on the amount of a compound in the sample. For example, clear water will allow more light to pass through than a solution colored with pigments, which will absorb more of the light in many wavelengths.

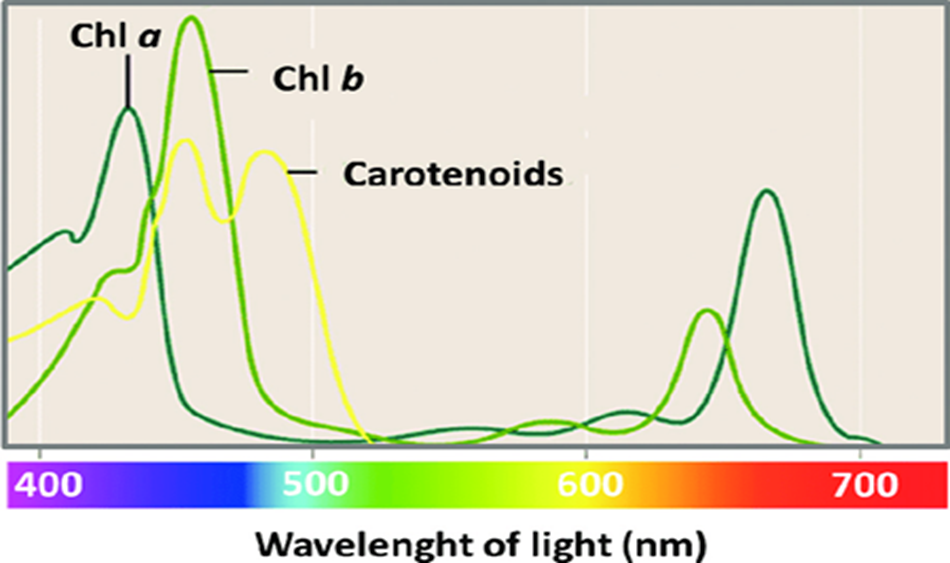

          The light band that each compound will absorb will differ. For example, in figure that chlorophyll a and b absorb many wavelengths, but chlorophyll a absorbs more violet and orange light, while chlorophyll b absorbs more blue and yellow wavelengths.

Spectrophotometers Work :-

          While the size and design of a spectrophotometer can differ, they each consist of a few basic parts,

• Light source that gives monochromatic/white light.
• Collimator to converge the light into a parallel beam.
• Monochromator to split monochromatic light into the component wavelengths. These can be prisms that split white light into the component visual colors. The monochromator can also be a grating to get UV, visual, and IR radiation bands.
• Wavelength selector, which is a slit that is used to select the desired wavelength/light band.
• Cuvettes, or vessels, usually made of glass or quartz to hold sample solution.
• Photometer, which is a photosensitive detector to measure the amount/intensity of light absorbed and transmitted through the sample.
• Result display section, which can be a meter or a digital screen.

          There are two spectrophotometer types based on the light band chosen for analysis:

• The UV-visible spectrophotometer, which uses visible (400 - 700 nm) and ultra-violet (185 - 400 nm) bands of light.
• The IR spectrophotometer, which uses infrared light as the source.

Spectrophotometer Price Points :-

          There are two kinds of spectrophotometers: single beam and double beam..

Single beam spectrophotometers are cost-effective compared to double beam variants and have the potential to perform better, as they do not need to expend energy splitting the beam. However, these devices are less stable than their double beam counterparts. Moreover, they require more work, as users must provide a reference to standardize the device before using it.

Double beam spectrophotometers compare the light intensity of the spectrum from a sample to a reference beam. Applications that require stability, speed, and automation rely on double beam spectrophotometers and are expensive. These typically have similar or better precision than single beam spectrophotometers.

Laws of Spectrophotometer

          Besides the wavelength of light, the absorbance of a spectrophotometer is influenced by the amount of a compound in a solution, as well as the size of the cuvette. Two laws define these two aspects: Beer's Law and Lambert's Law. These laws are considered the principles of spectrophotometry.

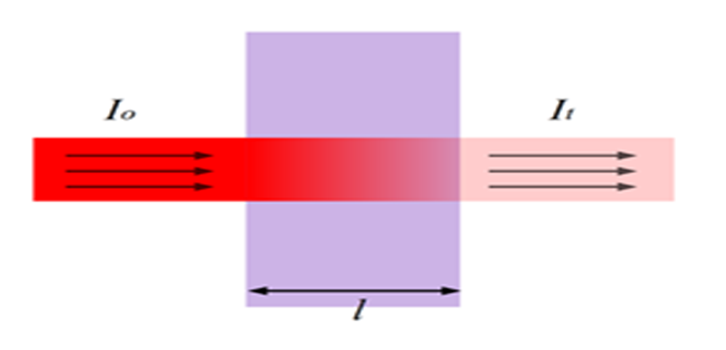

Lambert’s Law states that there is a direct but non-linear relationship between the length of the light path through the cuvette/sample (l) and the intensity of light transmitted, as shown in Figure 5. Io is the intensity of light before it enters the sample, and It is the intensity of light after it has passed through the sample.
So Transmittance (T) = It / Io

Beer’s law states that the light absorbance depends on solute concentration (c).

The combination of the two laws called the Beer-Lambert Law states that absorbance depends on solute concentration (c), its molar absorptivity or absorption coefficient (ϵ), and length of light path (l).

So, Absorbance (A) = ϵlc

Absorbance and transmittance have no spectrophotometric units of measurement.

However, the light path length (l) is measured in cm, and ϵ is measured in L·mol-1·cm-1.

Usually, the spectrophotometer cuvette width (or light path length) is 1 cm, and the molar absorptivity of a solute is known, so based on the absorbance reading, the device can calculate the concentration or amount of solute (c) in the sample.



Spectrophotometer Uses and Applications :-

          Spectrophotometer’s availability in small, portable, and affordable devices, is expanding use of this precise technique in both scientific and practical applications.
          Liquid spectrophotometer was the first application of the technique. However, it is now also common for spectrophotometers to analyze opaque solids, including glass, and various films, such as those used in semiconductor manufacturing. Similarly, gas spectrophotometers are used to analyze air pollutants.
Spectrophotometer analysis has several functions:

• Quantifying concentrations of compounds
• Determining the structure of a compound
• Finding functional groups in chemicals
• Determining the molecular weight of compounds
• Determining the composition of materials

          These spectrophotometer analyses of organic and inorganic compounds have applications in the following:

• Determining the composition of materials as each element/compound can be identified based on its individual spectrum
• Detecting impurities in organic compounds, with the help of unique spectra of each compound
• Determining the rate of reaction based on the formation of compounds
• Determination of inorganic compounds by checking their composition
• Determination of proteins, as functional groups
• Determining the growth of microorganisms by molecular biology applications

Spectrophotometers Uses :-

          Several branches of science and industry make use of the applications of spectrophotometer analysis, with the notable ones being

• Food Science,
• Biochemistry Research,
• Medical Diagnostics,
• Water And Air Analysis,
•  Industrial Applications.



Food Science :-

            One of the most important and rapidly increasing branches of spectrophotometer applications is in the food supply chain. The technique is ideal for the determination of the organic compounds in ingredients and food mixtures.

NIR spectrophotometers are used for food analysis, as this light band targets the organic bonds formed between elements of a compound. These tools are simple to use and give rapid measurements of several constituents simultaneously. Moreover, as water has lower absorbance, NIR spectrophotometer can be used for analyzing food and ingredients with high water content, such as wine.

All the main stakeholders of the food chain - farmers, processors, distributors, retailers, and restaurants - can benefit from spectrophotometry analysis.

Uses of spectrophotometer  can be found in practically all categories of food at every stage of the supply chain .

• Farmers analyze ripeness of fresh produce, the moisture content in grains, quality of milk, and meat tenderness. The technique is useful for quality control, as well as specifying raw materials to enable correct labeling and improve pricing.
• Processors check chemical content and origins of raw materials, like olives for oil and cocoa for chocolates.  Spectrophotometer is useful for verification and selection of raw materials (e.g. in cheese making) or to control manufacturing and help in labeling.
• Distributors analyze the quality of flour or coffee beans and check the chemical composition and origin of products like honey. Monitoring the quality of products during storage and distribution and having precise classification can increase profits.
• Retailers and Restaurants analyze water, bread, dairy products, and the age of fruits to ensure the quality of food they provide to consumers, extend storing time, and get better prices.
• Governments and other certifying agents, can analyze all food for microbial and toxicological contamination on site and improve quality control.

Biochemistry Research :-

          UV-vis spectrophotometers are used in the qualitative and quantitative estimation of DNA, RNA, and proteins. These applications are useful in identifying species and monitoring enzymatic reactions to determine the products formed and estimate rates of reactions.

Medical diagnostics :-

          There are several applications of spectrophotometers in the medical field. They can be used to diagnose diseases and analyze blood. Trials have established that hand-held spectrophotometers can be used for non-destructive diagnostics, such as

• finding disturbance in blood circulation,
• predicting the outcome of gastrointestinal ulcer treatments,
• and monitoring drug dynamics in human and animal tissues.

Spectrophotometer measurements are also used extensively in the pharmaceutical industry.

Water and Air Analysis :-

            Currently, there are several major sources of water pollutants: chemicals and animal wastes from farms, oil and plastics, as well as industrial and untreated sewage discharges. These affect the quality of water in rivers and groundwater. Air pollutants come from burning agriculture and fossil fuels such as oil, gas, and coal.

          Specific pollutants or aggregates can be easily analyzed qualitatively and quantitatively by UV-vis spectrophotometers to control and monitor the quality of water and air.

INDUSTRIAL USES OF SPECTROPHOTOMETERS :-

            There are several applications of spectrophotometer measurements in industries.

          Spectrophotometer is used as an analytical technique to find failures in the aerospace, chemical, oil, and gas industry by analyzing the metal alloys, such as iron and aluminum. For example, aluminum alloys are used in structural components in aerospace, so spectrophotometer can detect faults and weaknesses in structures.

Spectrophotometer is also used in the quality control of paint systems and cement.
UV-vis spectrophotometers are suitable for colorimetry applications in industries that use pigments, such as printing, textiles, or ink production.

Increase in Spectrophotometers  Analyzers :-

            Several sensors, devices, probes, or instruments use spectrophotometer to analyze biochemical and physical characteristics of solids and liquids. There is a wide and growing range of spectrophotometers on the market today. For example, the CI-710s SpectraVue Leaf Spectrometer is a NIR spectrophotometer used to study many physiological processes and detect stress in plants and whose novel application is the non-destructive quantification of chemical concentrations and color analysis in plants.



Summary

          Spectrophotometer is a standard and inexpensive technique to measure light absorption or the amount of chemicals in a solution. It uses a light beam which passes through the sample, and each compound in the solution absorbs or transmits light over a certain wavelength.

          Spectromet is measured by a spectrophotometer; an instrument that is made up of two instruments – a spectrometer and a photometer. The spectrometer produces the light of the wavelength and the photometer measures the intensity of light by measuring the amount of light that passes through the sample.

          In addition to those two components, spectrophotometers consist of a light source, a monochromator, a sample chamber containing a cuvette, a detector (such as a photomultiplier tube or photodiode) to detect the transmitted light, a digital display and a data analysis software package.
